realgar

Realgar is a highly toxic arsenic sulfide and was the only pure orange pigment until modern chrome orange.

Manufacturer / product code:  Kremer / 10800
Chemical description: natural mineral, arsenic sulfide. Kremer PDF
Color: orange
Color Index: PY 39
More info: Pigments Through The Ages  Colourlex


Raman Spectroscopy 532 nm – ElviRa Spectrometer for Art


Raman Spectroscopy 532 nm (ElviRa spectrometer) Pigments-Checker Database


Raman spectroscopy 632 nm

realgar -Raman-632-Pigments

Raman spectroscopy 785 nm

Pigments (powder, no binder)


Raman Spectroscopy 785 nm Pigments (pure, no binder)

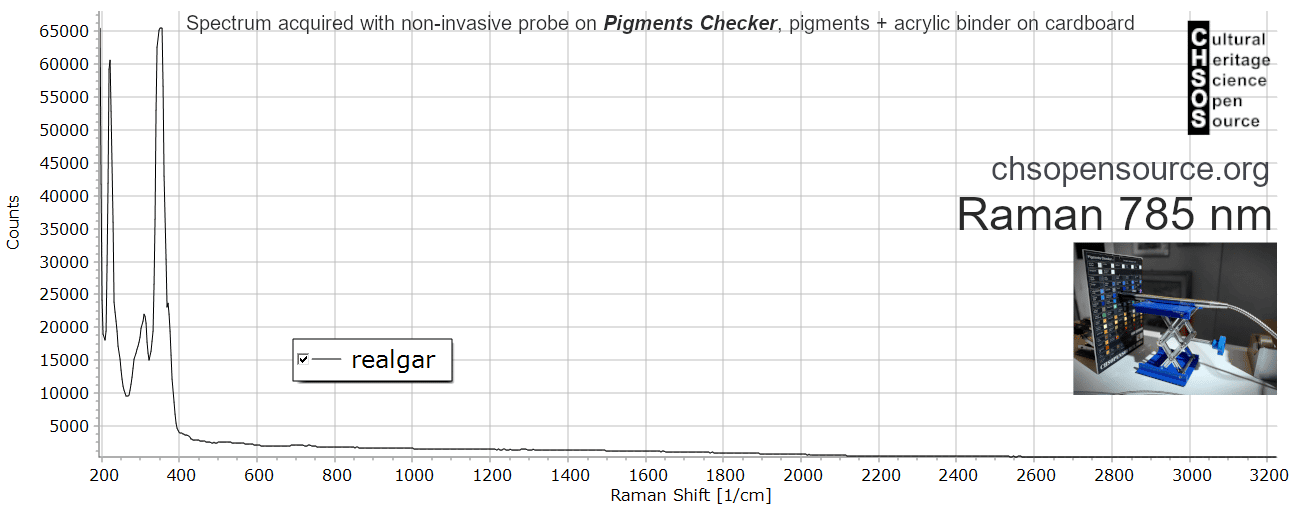

Pigments with acrylic binder (Pigments Checker)

Raman Spectroscopy 785 nm Pigments-Checker Database


Pure pigments (no binder, just powder)

DOWNLOAD Free Raman Database

DOWNLOAD paper:   “Pigments Checker version 3.0, a handy set for conservation scientists: A free online Raman spectra database”

Realgar 10800 Raman Spectroscopy Pigments Checker

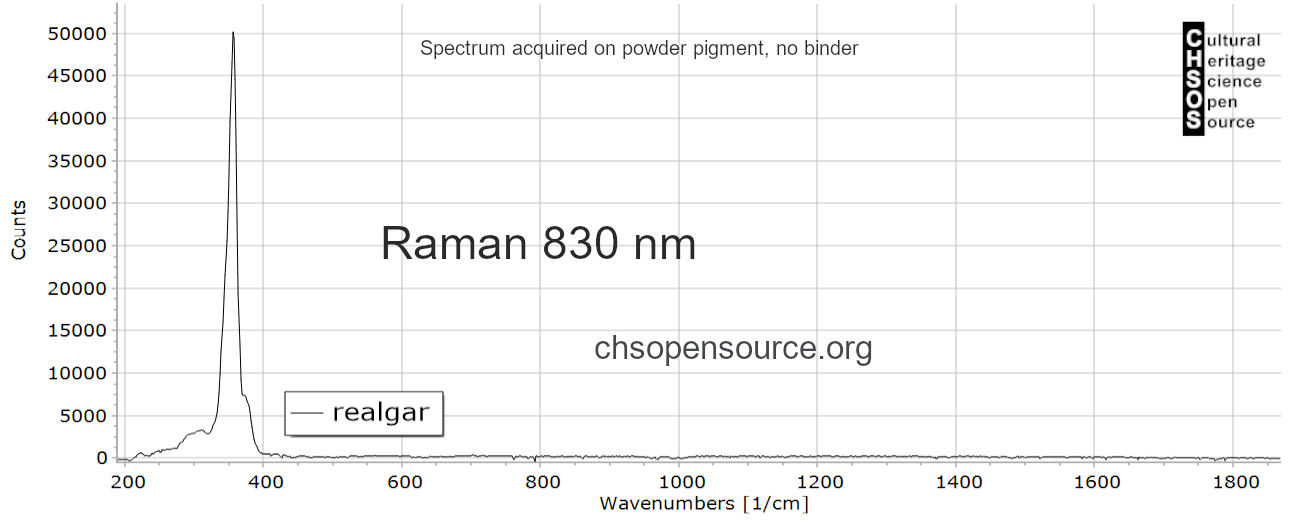

Raman spectroscopy 830 nm

Pigments (powder, no binder)

Raman Spectroscopy 830 nm Pigments-Checker Database

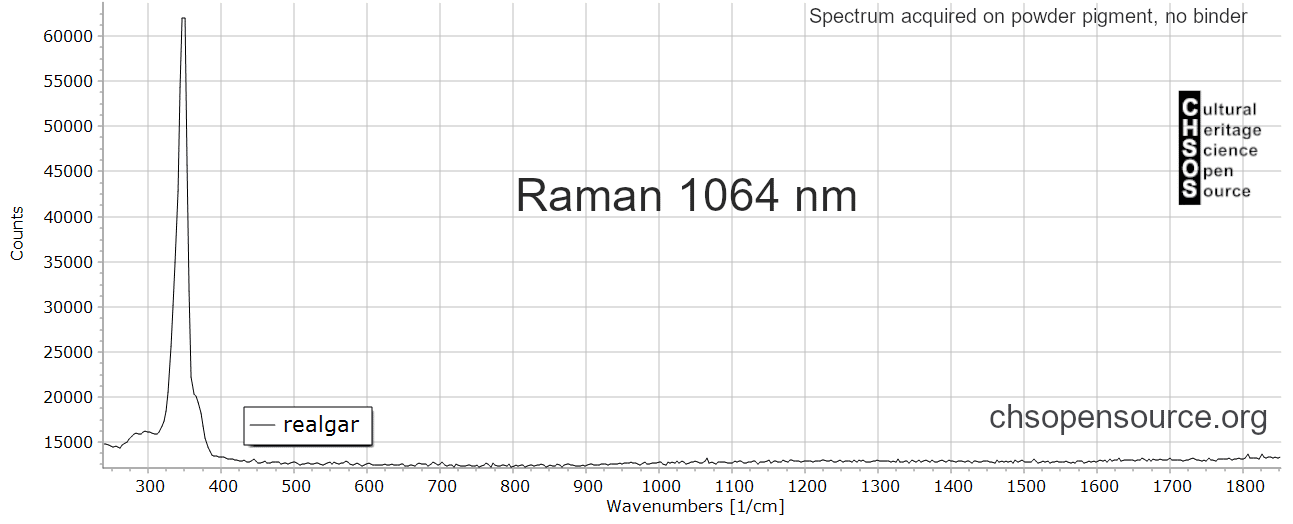

Raman spectroscopy 1064 nm

Pigments (powder, no binder)

Raman Spectroscopy 1064 nm Pigments-Checker Database


XRF spectroscopy

XRF Spectroscopy Pigments-Checker Database

DOWNLOAD previous database from Pigments Checker V.3      DOWNLOAD paper: R. Larsen, N. Coluzzi, A. Cosentino “Free XRF Spectroscopy database of Pigments Checker” Intl Journal of Conservation Science.


Reflectance Spectroscopy (200-1000 nm) – GorgiasUV Spectrometer

Reflectance Spectroscopy (200-1000 nm) (GorgiasUV) Pigments-Checker Database

Reflectance spectroscopy Gorgias Spectrometer for Art

Reflectance Spectroscopy (350-950 nm) (Gorgias) Pigments-Checker Database

Realgar

NIR Reflectance spectroscopy


NIR-Reflectance Spectroscopy (930-1690 nm) Pigments-Checker Database

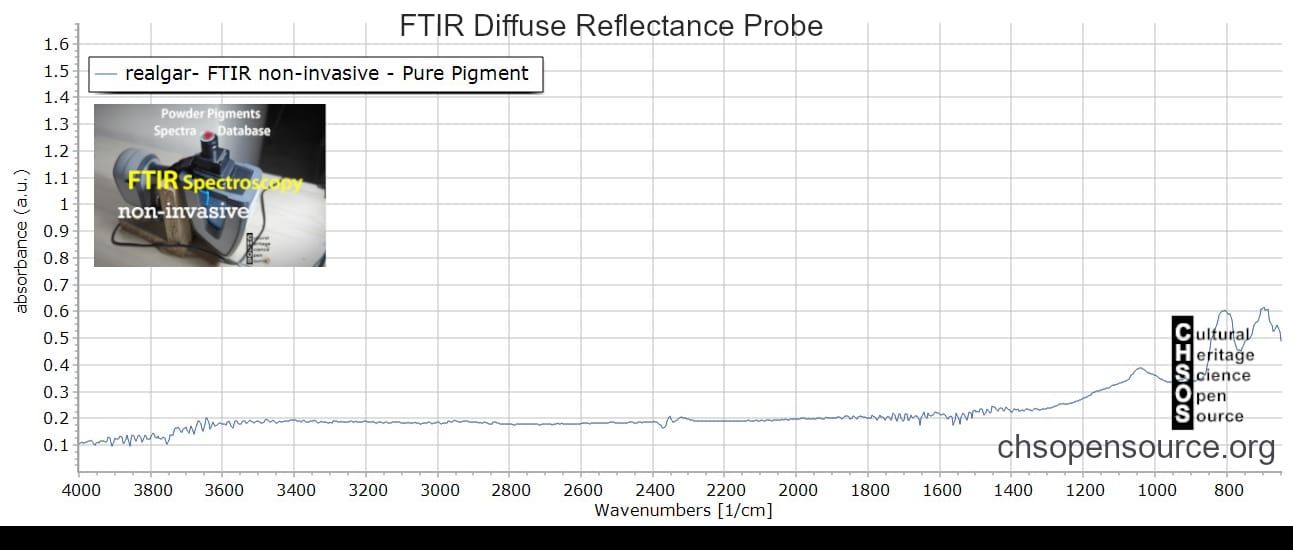

FT-IR Spectroscopy (Non-invasive Diffuse Reflectance Probe)

FTIR Diffuse Reflectance Spectroscopy Pigments-Checker Database

FTIR non-invasive Spectroscopy Pigments (pure, no binder) Database
