Halogen Lamp – Elio

Elio halogen lamp

Halogen lamp for infrared photography (IR) and Infrared reflectography (IRR) – Elio

Halogen lamp Elio -PDF (2361 downloads )

Elio is our general-purpose halogen lamp for imaging in the infrared spectral region as well as the visible range. You can use It for standard photography (VIS), infrared (IR) photography, and Infrared Reflectography (IRR).  Elio is very light-weight and compact and it hosts common J78 halogen lamps that are easy to find in any hardware store, no-special-costly-nightmare-to-find bulbs.  Maintenance of these lamps consists of only replace cheap bulbs.

Features

  • Projector style: floodlight.
  • Dimensions: 14 x 13 cm  (5.5 x 5.1 in).
  • Bulbs: R7S (78 mm), 150W, 110-240 V.
  • Weight: 560 gr (1.23 lbs).
  • Power cable length: 5 m.
We ship each Elio lamp with the bulb mounted (150 W) and we include 2 spare bulbs.
We ship each Elio lamp with the bulb mounted (150 W) and we include 2 spare bulbs.

Emission from VIS to IRR. These halogen lamps emit radiation from VIS to the IRR, so they can be used for both Technical Photography and Infrared Reflectography. Color Temperature (2800-3200 K).

110V or 220V

Select bulbs for 110 V or 220 V. The bulbs can be easily changed to work on 110 V (as in the USA) or 220 – 240 (as in Europe). Each lamp comes with 3 spare bulbs. Also, we chose the easiest halogen bulbs to be found when you ran out of our spare bulbs set.  They are standard R7s J78 bulbs that you can conveniently find in hardware stores in your area or where ever you are traveling to.
Check the QR code to retrieve all the info about this item
Check the QR code to retrieve all the info about this item



Halogen bulb available for 110 V or 220 V.

Halogen lamp (with tripod) – Elio

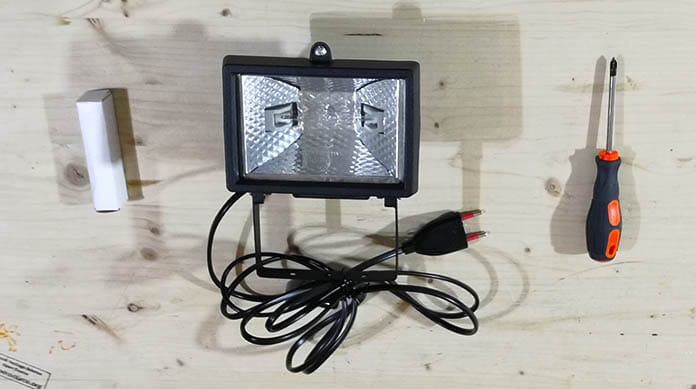

Bulb replacement

We ship each Elio lamp with the bulb mounted (150 W) and we include 2 spare bulbs. it is easy to replace the bulb and they are easy to find in standard hardware stores. Just ask for standard J78 halogen lamps. Using standard bulbs means low-cost maintenance and a very long operational time for your purchase.

Manufacturing

Learn Technical Photography for Art Examination

Technical Photography is one of the most powerful—and often overlooked—tools for the scientific examination of art and archaeology. If you are a conservator, scientist, or art collector and you are not yet familiar with this method, it is truly a missed opportunity. Using simple, affordable equipment and a clear methodology, Technical Photography allows you to reveal underdrawings, retouchings, material differences, and conservation issues in a completely non-invasive way. Far from being complex or inaccessible, it is an easy entry point into scientific analysis. In many cases, Technical Photography represents the first essential step toward a deeper understanding of artworks and archaeological objects.
