Polarized light photography (PL) is a useful method for the documentation of works of art and archaeology. PL photography eliminates surface reflections and professional photographers use it for high-quality documentation of varnished art.

Applications for Art Examination

PL photography eliminates glare in photos, in particular, disturbing reflections from varnish. Light from the lamps can be reflected or diffused from a painting. Reflected light gives glare while diffused light provides colors and texture. When the light is reflected it keeps its polarization while diffused light loses it. So, when polarized light illuminates a painting, the glare is still a polarized beam while diffused light vibrates in any direction. polarized-light-photography

Experimental Set up

images61

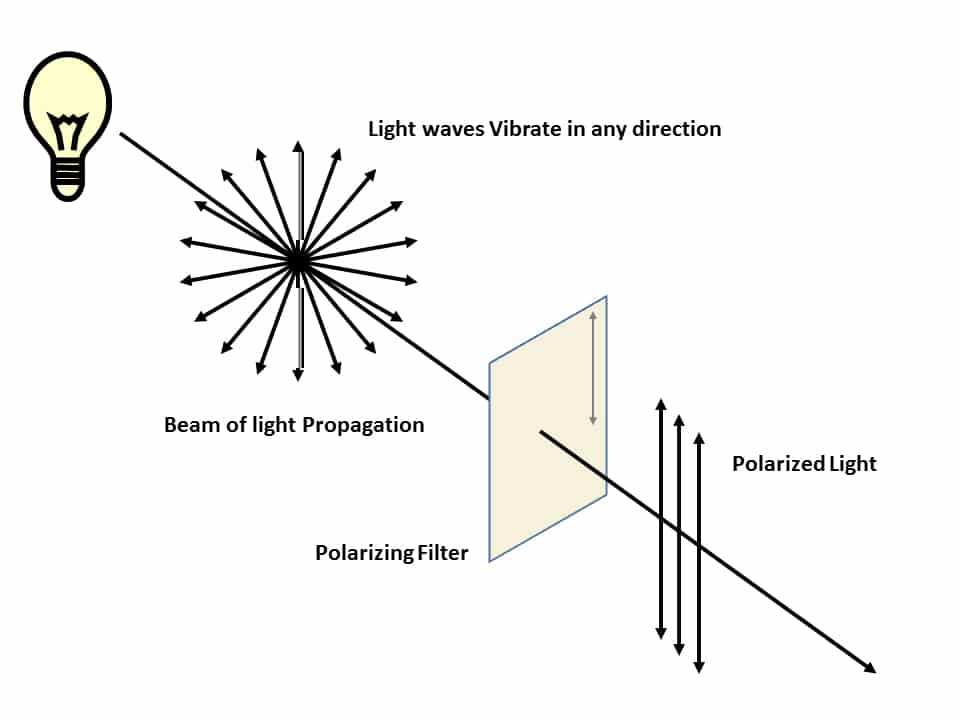

Light from a bulb or an LED lamp is non-polarized. Light waves vibrate in any direction while propagating from the light source into space. A single particle of light can be imagined as a wave that propagates from its source into space. A beam of light from the sun, a halogen, or an LED lamp, is composed of multiple light waves which vibrate in any direction.
images51
To polarize light we put in front of it a polarizing filter that allows just the waves vibrating in one specific direction.
A classical experiment with polarized light is that done with a calcite crystal and a polarizing filter.
images41

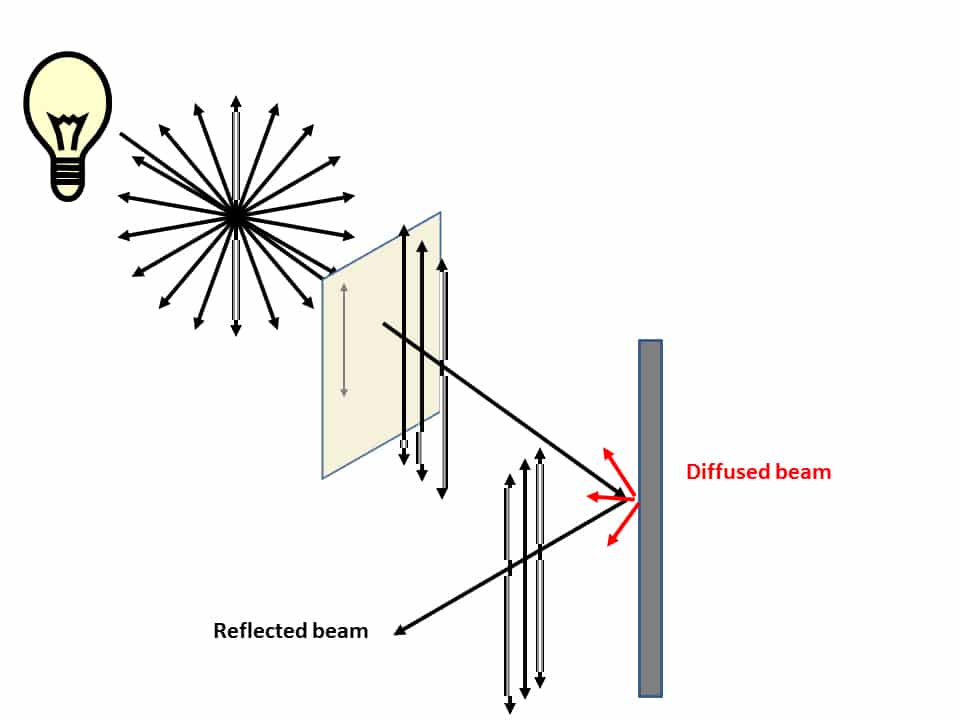

Reflected light keeps its polarization while diffused light vibrates in any direction.
images21

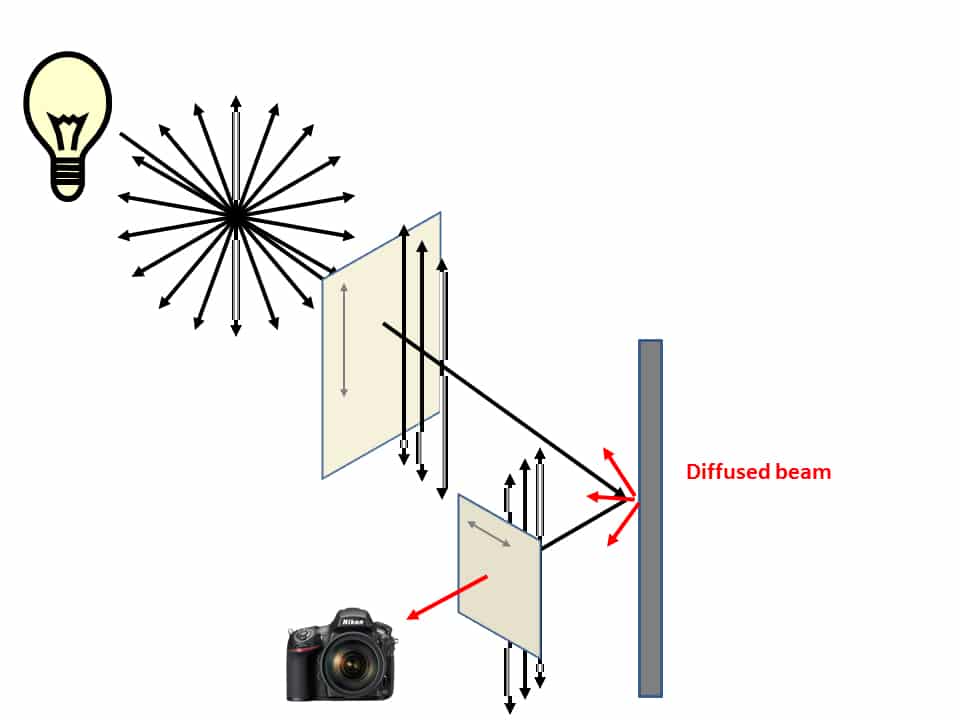

The final step is to add a polarizing filter on our camera and rotate it 90 degrees so to extinguish all reflected light, i.e. disturbing glare.
images71
Circular filter on camera at 0 degrees (Up figure) and 90 degrees (Down figure). The Polarized light photograph shows colors more saturated and glare extinguished. See the detail of the coin.
For manual focus, it can be used a linear polarizing filter. A circular polarizing filter is necessary for autofocus. Indeed, the camera focusing system doesn’t work properly with polarized light. The circular polarizing filter resolves this problem. It is essentially a linear polarizing filter that diffuses the polarized light just before feeding it to the camera. A video on the linear polarizing filter and the circular polarizing filter:
