Fabrizio – New UV lamp for Art and Archaeology examination

We made Fabrizio, the Ultraviolet (UV) lamp for Technical Art and Archaeology examination. Fabrizio is the UV lamp specifically designed for cultural heritage professionals. At CHSOS we tested a number of UV lamps already on the market but none was matching our standards. Fabrizio. is packed with features we need in daily art examination for conservation and scientific research.

Fabrizio, it’s a quite common Italian male name.  Used by the Romans the name Fabricius comes from faber, which indicated somebody that could make things, such as a craftsman.
Appius Claudius Caecus used this term in his famous sentence: Homo faber suae quisque fortunae (Every man is the artifex of his destiny).
At CHSOS we are more and more enjoying making tools for art examination. So, we named our new UV lamp, Fabrizio., another advanced tool proudly assembled and crafted in the CHSOS workshop.

————————————-

CLICK HERE for more info. Visit Fabrizio’s page.

————————————

Features

UV LED Technology

Fabrizio’s core is a new UV LED emitting at 365 nm, the standard UVA spectral region used for UVF and UVR technical photography.



Intense UV lamp with superb high power.

Fabrizio has a stunningly strong Radiant Power of 14250 mW­ which distributes on a large surface. This is double the power of our previous lamp. Fabrizio can boost this strong power thanks to the new AlInGaN-based thin-film vertical LED chip technology. It has a grid of 10 series by 5 parallel micro LEDs for a total power consumption of 50W and 1500 mA operating at 32V.   AlInGaN-based thin-film vertical LED chip technology.

Fabrizio is much more powerful than our previous UV lamp. It can evenly irradiate a large surface.
Fabrizio is much more powerful than our previous UV lamp. It can evenly irradiate a large surface.

High-quality pure UV output

Fabrizio mounts a special filter to cut off all the visible light and allow only suitable UV radiation for perfect UVF photos. The UV LEDs produce UV radiation but also a lot of undesired visible light.

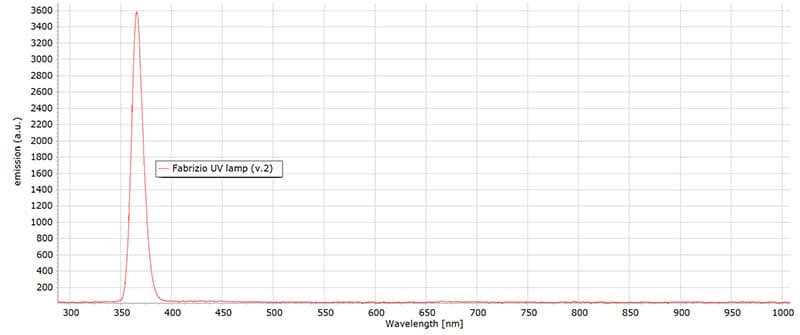

Fabrizio's spectral emission is pure UV radiation.
Fabrizio’s spectral emission is pure UV radiation. Fabrizio mounts a special filter to cut off all the visible light and allow only suitable UV radiation for perfect UVF photos. The UV LEDs produce UV radiation but also a lot of undesired visible light. The UVF images realized with these bare UV LEDs do not reveal the real UV fluorescence of the materials tested because the visible light overwhelms the dim fluorescence.

Hand-held and standard tripod adapter.

Fabrizio comes with and handle and an adapter for photographic tripods, just as a camera. How convenient! We work on scaffoldings and on-site, not just in laboratories, so we need a versatile handling of the lamp.

Fabrizio can be hand-held or attached to a standard photography tripod.
Fabrizio can be hand-held or attached to a standard photography tripod.

Fabrizio works in any Country

Fabrizio electronic components accept both international voltage standards 110 V and  220 V. You can use Fabrizio in any Country.

Fabrizio made at CHSOS workshop

Fabrizio is proudly crafted and assembled in the CHSOS workshop. We produce a few items and we keep production as prototype mode. This allows as to constantly improve our products.

2 thoughts on “Fabrizio – New UV lamp for Art and Archaeology examination

  1. hello Antonio,
    This looks very promising, however what I would like to know is how this UV lamp perfroms in comparison with standard UV tubes in terms of intensity

    best rergards,
    Geert

    1. Hi Geert, thanks for your question. I put the answer in the FAq section of Fabrizo’s webpage, look at the bottom. https://chsopensource.org/ultraviolet-lamp/
      Let me know if you have other questions!
