CHSOS  has developed Archimedes, the multipurpose scanner for Art Diagnostics. It is a modular low-cost, mobile and lightweight scanner that can accommodate a number of diagnostic imaging methods. such as Technical photography, Infrared Reflectography, and Multispectral Imaging.



This scanner is used to acquire high resolution imaging of library and archival assets such as manuscripts, prints, and drawings that need to be kept flat on a table. This scanner moves with high resolution (0.1 mm) an imaging camera ((weight up to 3 Kgs) over the document which can safely rest on the table. It can scan a maximum areas 70 x 70 cm and it can be connected to a computer to control the most appropriate XY movements.

Download Archimedes brochure

Our Catalog and Prices - PDF

Archimedes for Paper Conservation

This scanner is particularly useful for library assets such as manuscripts, prints, and drawings that need to be kept flat. The imaging cameras can be scanned over the paper object which can safely rest on the table. Archimedes scanner can fit even a large infrared reflectography camera and it helps to acquire high-resolution imaging of the items.

Real world successful applications

Archimedes used by the Houston Museum of Natural Science to study Aztec manuscripts. CLICK

Archimedes used at the Qatar National Library CLICK

Installed Archimedes

Qatar National Library (March 2018)

Making Archimedes

Step one

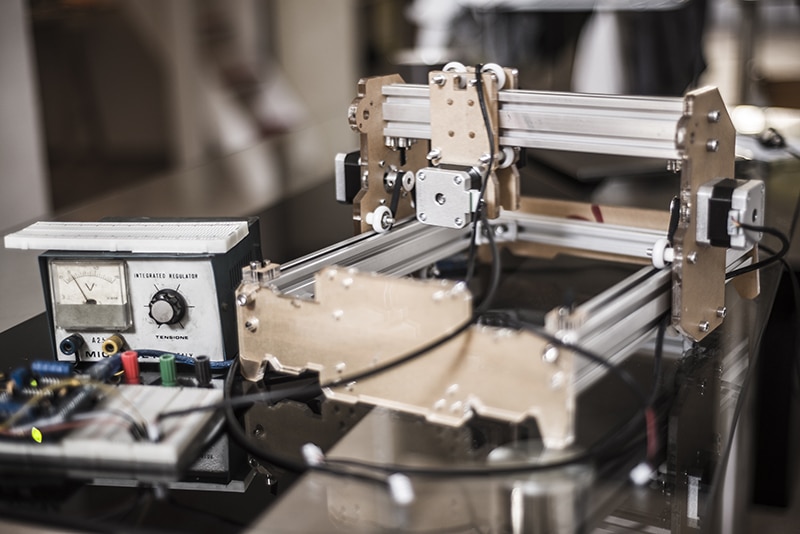

We start manufacturing Archimedes collecting its essential components. Archimedes is made of a microcontroller, 3 motors, aluminum extrusions plus nuts and bolts.

Archimedes essential components

Step two

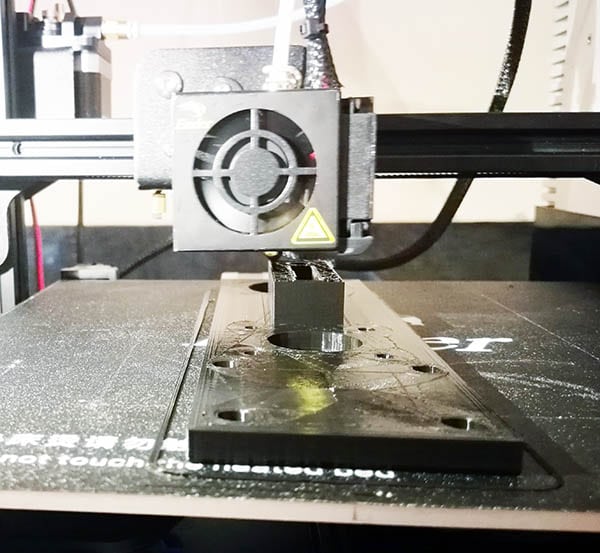

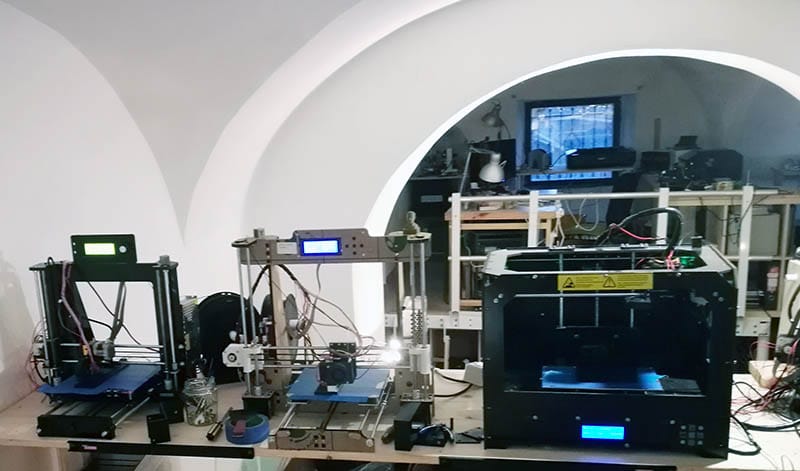

We 3D print the parts to hold motors and the camera.
