I noticed that I’m focusing this blog too much on technical and geeky stuff on how the scientific tools work rather than telling why we actually use the different imaging methods.  So, this post explains why we use Infrared False Color with some examples and I give the procedure to make it with Photoshop CS6.

Why Infrared False Color (IRFC) in Art Examination

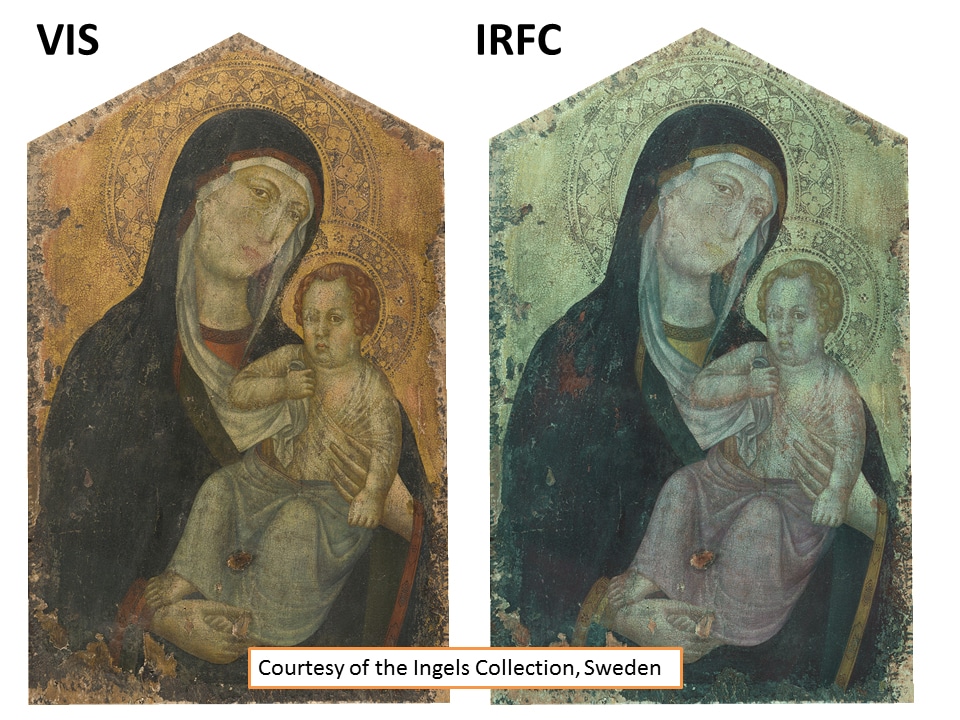

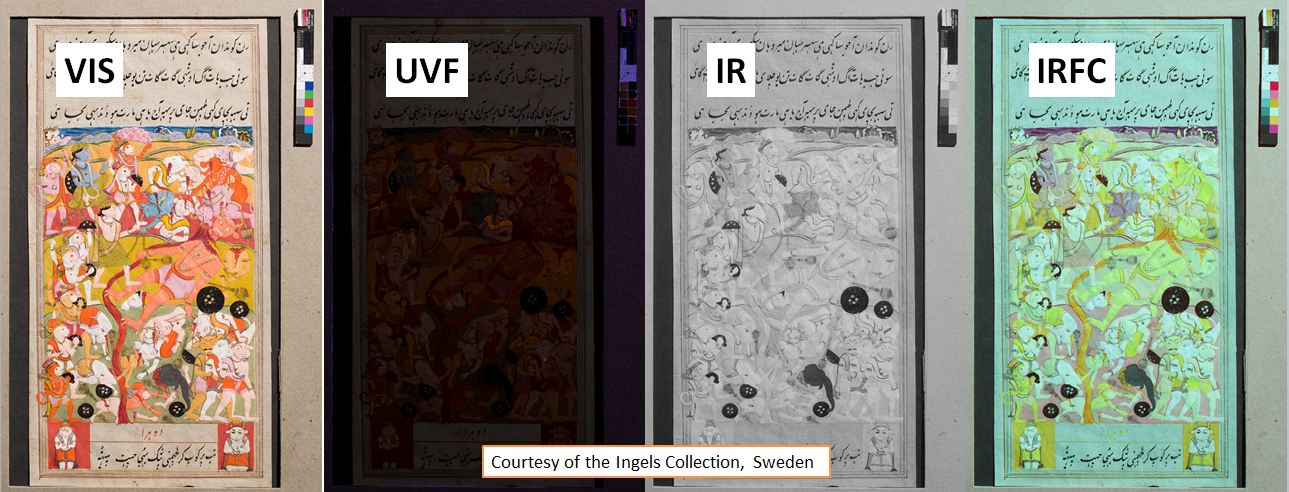

Infrared False Color (IRFC) it’s widely used in art examination for, essentially, two tasks:  identify pigments [1, 2] and distinguish between iron gall ink and carbon-based ink [3]. In particular, in European art, infrared false color has been used to quickly distinguish the two most common blue pigments, azurite and super expensive ultramarine, in old masters paintings [4]. Indeed, while ultramarine has a characteristic “red” infrared false color, azurite turns into a purplish blue false color. Below are some IRFC examples that I shot for the Ingels Collection in Sweden.



Italian Manuscript. Ingels Collection, Sweden. Iron-Gall ink has a typical  red infrared false color. The blue capital “A” is probably ultramarine since shows red infrared false color.

How to make Infrared False Color
The Infrared False Color Kodak Ektachrome Infrared film was originally developed for military purposes to distinguish camouflage from vegetation. Today we can reproduce the same imaging method doing some Photoshop editing. Take a VIS image and an IR image of the same subject. Load them on two layers into a Photoshop document.  Select the VIS layer and copy and paste the Green channel into the Blue channel. Now copy and paste the Red channel into the Green channel. Now copy any channel of the IR image and paste it into the Red channel in the VIS Image. Don’t worry, I made a video.

In order to paste the infrared image into the red channel of the visible image the two images – VIS and IR – must be “registered”.  This is a technical term which means that the two images must overlap as better as possible. The problem arises since after you shoot a VIS picture, in order to shoot a sharp IR image you have to check focus again. Visible and IR light are not focused at the same distance inside the camera. Therefore, when you compare the two images, they do not overlap. This is not a big issue since using Photoshop you can scale the IR image so that it fits on the VIS image. In order to make this process more quick and effortless I use to put 4 targets on the corners of the picture I’m taking. This targets (just 2 crossed lines) must be made with a carbon-based ink otherwise they become transparent in the IR image and therefore useless.

Notes:

Once you are done always check the AIC color Target or any color checker you use to be sure you always have the same colors switch in the AIC standards (check out you didn’t mess with channels switching).

In the video I don’t use any keywords command (such as ctrl +c for copy and ctrl + v for paste) just for clarity. You are encouraged to use them to speed up your work.

In this post I give  exposure values for both the VIS and IR images in order to have a standardized IRFC.
